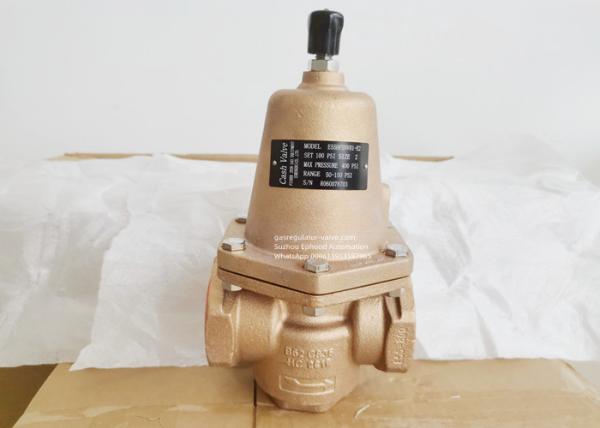

Cash Valve E55 High Capacity Bronze Body Material Pressure
Regulating Valve
Pressure Regulator For Water And Air
CASH VALVE Clean Oxygen Pressure Reducing Valve
Description
Due to its exceptional design features,the CASH E55 pressure
regulator will handle high and variable flow rates thatare
beyond the limitations of ordinaryregulators and still maintain
unusuallyclose regulation of the downstreamlpressure.
The Type E55 pressure regulator is suitable for service on air,
water, oil, gases (exceptsteam) and fluids not corrosive to brass.
It is particularly suitable for water systems of all kinds and
various hydraulic and pneumatic systems that require a regulator
with
exceptional accuracy.
Available in 1/2" thru 2" sizes, the Type E55 Clean Oxygen pressure regulator is designed for systems having a maximum
inlet pressure of 400psi and allows delivery pressures to be
adjusted from a maximum of 300 psi to a minimum of 25 psi
depending on the adjusting spring used.Refer to the Spring Range
Table under Specifications for additional information.
The maximum system operating temperature must not exceed 180F.
MATERIALS OF CONSTRUCTION
Part Description Materials
| Body | Bronze |
| Spring chamber | Bronze |
| Adjusting spring | Steel plated |
| Pressure plate | Brass |
| Diaphragm | NBR nylon reinforced |
| Body seat | Stainless steel |
| Seat disc | NBR |
| Piston | Brass |
| O-ring | NBR |
| Bottom plug | Bronze |
Applications:
All types of water systems; various pneumatic, cryogenic and
hydraulic systems, etc.
Sizes: 1/2", 3/4", 1", 11/4", 11/2", 2" in NPT and BSPT threads.
Features:
Aspirated design for close pressure control. Handles high and
variable flow rates well beyond the limitations of
ordinary regulators. Bronze body with stainless steel body seat.
Brass built in strainer is easily removed for cleaning.
Maximum inlet pressure 400 psi. Delivery pressure: maximum 300 psi;
minimum 25 psi. Maximum temperature 180°F (82°C).
CASH VALVE E-55 Series Bronze Material Pressure Regulators
Pressure regulators for water and air services designed for high
capacity,
variable flow rates and accurate regulation
GENERAL APPLICATION
Suitable for service on air, water, oil, gases (except steam) and
fluids not corrosive to brass.
It is particularly suitable for all types of water systems and
various hydraulic and pneumatic systems that require exceptional
accuracy.
E55 Pressure Regulator Air Capacity
