MR95 Series Pressure Fisher Gas Regulator For Fired Heaters And
Boilers
Fisher MR95 Series Pressure Regulator
Fuel Gas Pressure Control Solutions for Fired Heaters and Boilers
MR95 Series regulators are compact, large-capacity, direct-operated
pressure regulators. Typical applications include superheated
steam, steam injection, steam tracing, nitrogen purging, boiler
feed water, process chemicals, cooling water, test fixtures, wash
tanks, sterilizers/autoclaves, fuel lines, pneumatic supply, and
many others.
This product can help solve the toughest pressure control
applications. Typical applications include superheated steam, steam
injection, steam tracing,nitrogen purging, boiler feed water,
process chemicals, cooling water, test fixtures, wash tanks,
sterilizers/autoclaves, fuel lines, pneumatic supply, and many
others.
Available Constructions
Type MR95L: Pressure reducing regulator for outlet pressures from 2 to 30 psig
/ 0.14 to 2.1 bar.1/4 in. to 1 in. body sizes only.
Type MR95H: Pressure reducing regulator for outlet pressures from 5 to 150
psig / 0.34 to 10.3 bar.

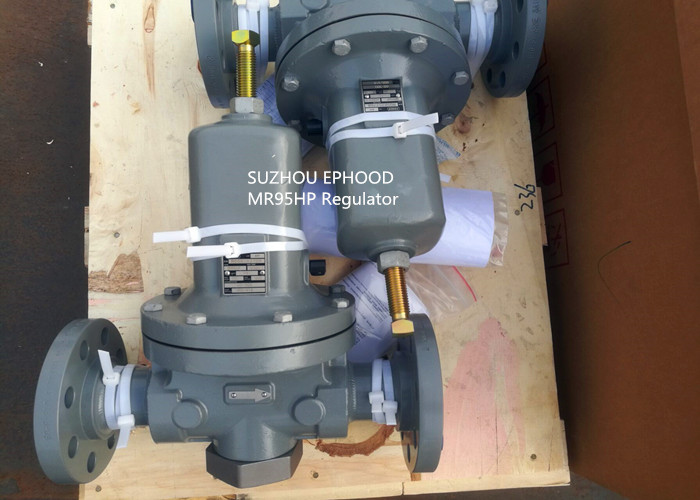

Type MR95HP: Pressure reducing regulator for outlet pressures from 15 to 400
psig / 1.0 to 27.6 bar (soft-seated).
Type MR95HT: High temperature pressure reducing regulator for outlet pressures
from 15 to 300 psig / 1.0 to 20.7 bar (metal seat) and up to 650°F
/ 343°C.
Type MR95LD: Pressure reducing differential regulator for differential set
pressures from 2 to 30 psi / 0.14 to 2.1 bar with maximum inlet
pressure up to 300 psi / 20.7 bar and maximum outlet pressure up to
125 psi / 8.6 bar. 1/4 in. to 1 in. body sizes only.
Type MR95HD: Pressure reducing differential regulator for differential set
pressures from 5 to 150 psi / 0.34 to 10.3 bar with maximum
inlet/outlet pressures up to 300 psig / 20.7 bar.
Type MR95HDP: Pressure reducing differential regulator for differential set
pressures from 5 to 150 psi / 0.34 to 10.3 bar with maximum inlet/
outlet pressures up to 600 psi / 41.4 bar.
Body and Orifice Sizes
1/4 NPT body:
0.284 in. / 7.22 mm orifice
1/2 in. / DN 15 body:
0.416 in. / 10.56 mm orifice
3/4 and 1 in. / DN 20 and 25 bodies:
0.631 in. / 16.02 mm orifice
1-1/2 and 2 in. / DN 40 and 50 bodies
(not available for Types MR95L and MR95LD):
1.142 in. / 29 mm orifice
Features
• Handwheels/Tee Handles—Allow easypressure setting changes and are standard on Types
MR95LD, MR95HD and MR95HDP and optional on the Types MR95L, MR95H,
MR95HP and MR95HT regulators.
• Versatile—Can be used with all process media including air, steam, gas,
water, liquids (oils and process chemicals) and oxygen.
• Tight Shutoff With Elastomer Seats—Metal seats available for high temperatures.
• Direct-Operated—Design maximizes speed of response.
• Robust—Up to 1000 psig / 68.9 bar inlet pressure.
| Available Low Pressure Configurations | MR95L: 2 to 30 psig / 0.14 to 2.1 bar outlet pressures |
| Available High Pressure Configurations | MR95H: 5 to 150 psig / 0.35 to 10.3 bar outlet
MR95HP: 15 to 400 psig / 1.0 to 27.6 bar outlet
MR95HT: 15 to 300 psig / 1.0 to 20.7 bar outlet and up to 650°F /
343°C |
| Available Pressure Differential Configurations | MR95LD: 2 to 30 psi / 0.14 to 2.1 bar differential
MR95HD: 5 to 150 psi / 0.35 to 10.3 bar
MR95HDP: 5 to 150 psi / 0.35 to 10.3 bar with max inlet of 600 psig
/ 41.4 bar |
| Body and Spring Case Materials | Gray Cast Iron
WCC Steel
LCC Steel
Stainless Steel
Special Alloys: Monel®, Hastelloy® C, Aluminum-Bronze
Contact Sales Office for Special Alloys |
| Body Size | 1/4-inch
1/2-inch / DN 15
3/4 and 1-inch / DN 20 and 25
1-1/2 and 2-inch / DN 40 and 50 (not available for Types MR95L and
MR95LD) |
| End Connection Styles | NPT,Flange |
| Maximum Inlet Pressure | 1000 psig / 69 bar |
| Maximum Outlet Pressure | 450 psig / 31 bar |
| Pressure Registration | Internal or External |
