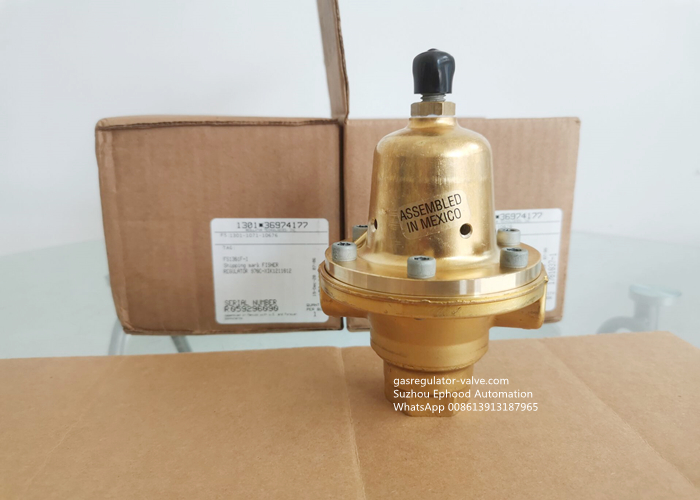

Fisher 1301F-1 Model Brass Body Material High Pressure Gas Regulator

Types 1301F and 1301G regulators are self-operated, high-pressure regulators, which can be used where high pressure

gas must be reduced for use as pilot supply pressure in pilot-operated regulators or as loading pressure in pressure-loaded

regulators. Types 1301F and 1301G regulators can also be used in many other applications as high-pressure reducing

regulators for various gases.

The proven reliability and accurate regulation of the Type 1301F high pressure regulator makes it ideal for numerous

high-pressure drop applications. This multi-purpose regulator can be used as pilot supply or pressure-loading regulators

where high-pressure operating medium must be reduced for use by gas regulator pilots or pressure-loaded regulators.

Its rugged design offers versatility for a wide variety of applications.

Available Configurations

Type 1301F: Direct-operated high-pressure reducing regulator for inlet pressures up to 6000 psig / 414 bar and outlet

pressure ranges from 10 to 225 psig / 0,69 to 15,5 bar

Body Size and End Connection Style
1/4-inch FNPT

Maximum Inlet Pressure
6000 psig / 414 bar

Outlet Pressure Ranges
1301F-1 : 10-75psi /0.6-5.1bar

Maximum Emergency Outlet Pressure
Type 1301F: 250 psig / 17,2 bar

Pressure Registration
Internal

Temperature Capabilities
-20° to 180°F / -29° to 82°C

Overpressure Protection

The 1301 Series regulators have an outlet pressure rating lower than their inlet pressure rating. If actual

inlet pressure can exceed the outlet pressure rating,outlet overpressure protection is necessary. However,

overpressuring any portion of the regulators beyond

the limits in Specifications section may cause leakage,damage to regulator parts, or personal injury due to

bursting of pressure-containing parts.

Application

1301F High Pressure Regulator will suit for use on Compression,Facilities & Process Utilities,Plant Air,Pressure Control,Wellhead.
