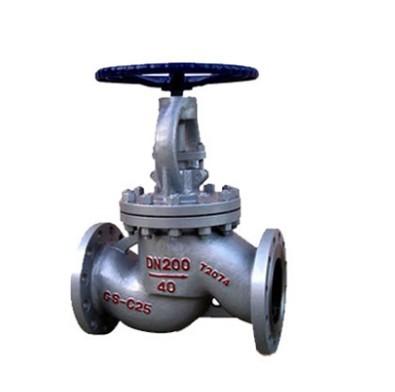

J41H Carbon Steel Stainless Steel Globe Valve Flange Connection Threaded Globe Valve

Ask Lasest Price
Brand Name :	SUFA
Model Number :	J41H
Certification :	(DNV)ISO9001,(DNV)ISO14001,CE0035
Price :	USD 50~500/set
Payment Terms :	T/T, Western Union, MoneyGram, L/C
Supply Ability :	500 set/month
Delivery Time :	within 8-12 working days upon receipt of payment

Add to Cart

Product Details
Company Profile

J41H Carbon Steel Stainless Steel Globe Valve Flange Connection Threaded Globe Valve

Product use

Applicable to Class1500-29 ~ ~ 3500 lb, working temperature 570 ℃ under various working conditions such as petroleum, chemical industry, power plant piping cut off or connect medium.Applicable medium: water, oil, steam and other non-corrosive medium.

MAIN SPECIFICATION

J41H model PN16~PN160 Main performance parameters of steel globe valve
model		PN		Working pressure/ MPa		Temperature/ ℃		Applicable medium
J41H-16C~160C		16~160		1.6~16.0		≤425		water, oil, steam
Product component material J41H model PN16~PN160 Steel globe valve parts material
Model	material
	BODY AND BONNET		stem		Sealing face		Packing
J41H-16C~160C	WCB		Chromium stainless steel		Surfacing iron base alloys		Asbestos, graphite, flexible graphite,PTEF

J41H PN16 Steel globe valve product shape and structure size (mm)
DN	L	D	D1	D2	b	z×ød	H	D0	weight/KG
10	130	90	60	40	14	4×ø14	198	120	5
15	130	95	65	45	14	4×ø14	200	120	5.5
20	150	105	75	55	14	4×ø14	243	140	7.3
25	160	115	85	65	14	4×ø14	253	160	8
32	180	135	100	78	15	4×ø18	280	160	12
40	200	145	110	85	16	4×ø18	312	200	16
50	230	160	125	100	16	4×ø18	321	200	16
65	290	180	145	120	18	4×ø18	325	240	22
80	310	195	160	135	20	4×ø18	355	240	31
100	350	215	180	155	20	4×ø18	415	280	45
125	400	245	210	185	22	4×ø18	460	320	80
150	480	280	240	210	24	8×ø23	510	360	97
200	600	335	295	265	26	12×ø23	590	360	169

J41H PN25 Steel globe valve product shape and structure size(mm)
DN	L	D	D1	D2	b	z×ød	H	D0	weight/KG
10	130	90	60	40	16	4×ø14	198	120	4.9
15	130	95	65	45	16	4×ø14	233	120	5.5
20	150	105	75	55	16	4×ø14	275	140	7
25	160	115	85	65	16	4×ø14	285	160	7.5
32	180	135	100	78	18	4×ø18	302	180	8.5
40	200	145	110	85	18	4×ø18	355	200	12.5
50	230	160	125	100	20	4×ø18	362	240	16
65	290	180	145	120	22	8×ø18	325	280	25
80	310	195	160	135	22	8×ø18	369	280	30
100	350	230	190	165	24	8×ø23	370	300	35
125	400	270	220	188	28	8×ø18	558	400	89
150	480	300	250	218	30	8×ø23	611	400	98
200	600	360	310	278	34	12×ø25	721	400	170

J41H PN40 Steel globe valve product shape and structure size (mm)
DN	L	D	D1	D2	b	z×ød	H	D0	weight/KG
10	130	90	60	40	16	4×ø14	198	120	4.5
15	130	95	65	45	16	4×ø14	233	120	5
20	150	105	75	55	16	4×ø14	275	140	7
25	160	115	85	65	16	4×ø14	285	160	9
32	180	135	100	78	18	4×ø18	302	160	12
40	200	145	110	85	18	4×ø18	355	200	17
50	230	160	125	100	20	4×ø18	373	240	24
65	290	180	145	120	22	8×ø18	408	280	33
80	310	195	160	135	22	8×ø18	436	320	44
100	350	230	190	160	24	8×ø23	480	360	60
125	400	270	220	188	28	8×ø25	558	400	89
150	480	300	250	218	30	8×ø25	611	400	130

【

J41H PN63 Steel globe valve product shape and structure size (mm)
DN	L	D	D1	D2	b	z×ød	H	D0	weight/KG
15	170	105	75	55	18	4×ø14	148	100	5
20	190	125	90	68	20	4×ø18	150	100	6
25	210	135	100	78	22	4×ø18	175	120	8
32	230	150	110	82	24	4×ø23	200	140	11
40	260	165	125	95	24	4×ø23	231	160	14
50	300	175	135	105	26	4×ø23	262	180	18
65	340	200	160	130	28	8×ø23	450	320	48
80	380	210	170	140	30	8×ø23	485	360	56
100	430	250	200	168	30	8×ø25	537	400	75
150	550	340	280	240	38	8×ø34	646	450	175

J41H PN100 Steel globe valve product shape and structure size (mm)
DN	L	D	D1	D2	b	z×ød	H	D0	weight/KG
10	170	100	70	50	20	4×ø14	-	100	5.7
15	170	105	75	55	20	4×ø14	195	120	10
20	190	125	90	68	22	4×ø18	228	120	13.5
25	210	135	100	78	24	4×ø18	250	160	14
32	230	150	110	82	24	4×ø23	326	200	14.3
40	260	165	125	95	26	4×ø23	359	240	29.5
50	300	195	145	112	28	4×ø25	414	280	48.5
65	340	220	170	138	32	8×ø25	434	320	65
80	380	230	180	148	34	8×ø25	547	400	92
100	430	265	210	172	38	8×ø30	621	450	107
125	500	310	250	210	42	8×ø34	-	-	-
150	550	350	290	250	46	12×ø34	840	-	310
200	650	430	360	312	54	12×ø41	925	-	590
250	775	500	430	382	60	12×ø41	1015	-	850
300	900	585	500	442	70	12×ø48	1200	-	1040

J41H PN160 Steel globe valve product shape and structure size (mm)
DN	L	D	D1	D2	b	z×ød	H	D0	weight/KG
15	170	110	75	52	24	4×ø18	148	156	4.64
20	190	130	90	62	26	4×ø23	156	161	7.42
25	210	140	100	72	28	4×ø23	175	187	10.1
32	230	165	115	85	30	4×ø25	200	214	12.3
40	260	175	125	92	32	4×ø27	231	252	15.2
50	300	215	165	132	36	8×ø25	262	291	29.7

Testing Conditions

DN50-DN1000 SUFA Brand Stainless Steel Silence Lift Check Valve

The corner of the inventory

DN50-DN1000 SUFA Brand Stainless Steel Silence Lift Check Valve

Installation

DN50-DN1000 SUFA Brand Stainless Steel Silence Lift Check Valve
