Solid Water Cast Steel Gate Valve Commercial Flanged Connection Type

Product Categories

Suzhou Ephood Automation Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	sufa
Model Number :	Z41H-16c
Certification :	(DNV)ISO9001,(DNV)ISO14001,CE0035
Price :	USD 50~500/SET
Payment Terms :	T/T, Western Union, L/C, MoneyGram
Supply Ability :	500 SETS/MONTH
Delivery Time :	within 8-12 working days upon receipt of payment

Add to Cart

Rising Stem Solid Gate valve

Size DN50—DN600
Nominal Pressure PN10/PN16
Working Temperature -10°C~120°C
Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc

Standard:

Design And Manufacture: API 600, API 6D, BS1414,Etc.

Face To Face (End To End): ANSI B16.10, API 6D,Etc.

Flanged Connection: ANSI B16.5,Etc.

Butt Welded End: ANSI B16.25,Etc.

Test And Inspection: API 598, API 6D,Etc.

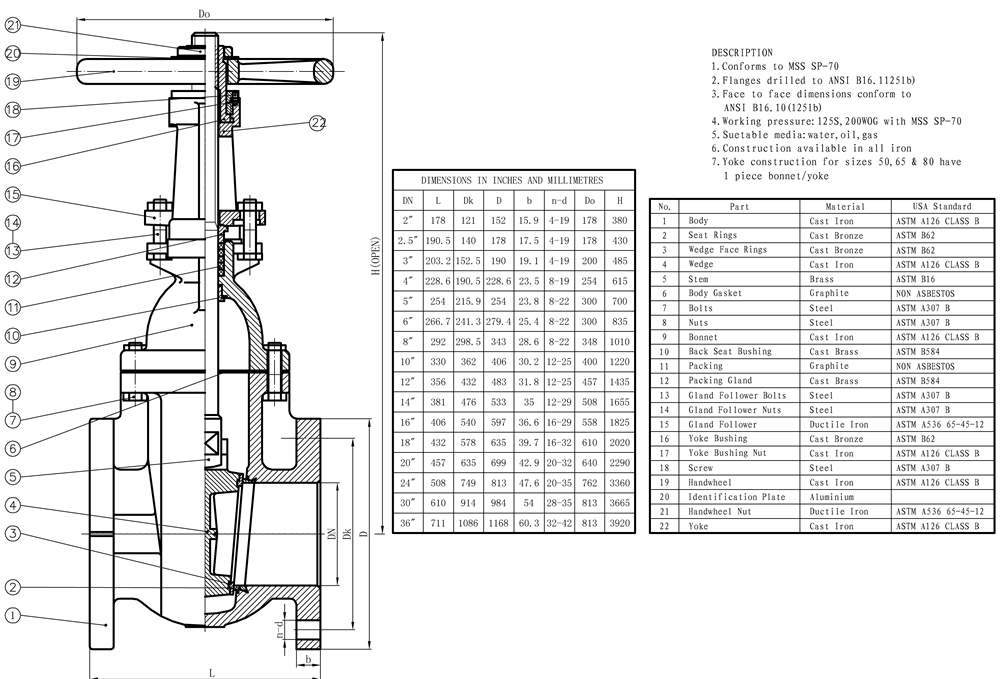

Specification
Size	DN50—DN600
Nominal Pressure	PN10/PN16
Working Temperature	-10°C~120°C
Suitable Medium	Chemicals,air,water,steam,oil, acids,salts,etc
Standards:
Design standard	DIN3352 F4/F5, MSS SP-70,AWWA C509/515,BS5163
Face to Face	DIN3202 F4/F5, BS5163, ANSI B16.10
Flange Drilling	DIN2533 PN10/PN16, ANSI 125/150,JIS10K
Test Inspection	DIN3230, BS6755
Materials:
Body	Cast Iron, Ductile Iron
Wedge	Cast Iron, Ductile Iron
Stem	Stainless steel
Sealing Ring	EPDM
O Ring	EPDM

Product Tags:

stainless steel knife gate valve
