    EKB Resilient Seated Solid Wedge Gate Valve WCB Valve Body With Socket Ends

    Ask Lasest Price
    Brand Name : sufa
    Model Number : 80~300TZ59X-16Q-0
    Certification : (DNV)ISO9001,(DNV)ISO14001,CE0035
    Price : USD 50~500/SET
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 500 SETS/MONTH
    Delivery Time : within 8-12 working days upon receipt of payment
    • Product Details
    • Company Profile

    EKB Resilient Seated Solid Wedge Gate Valve WCB Valve Body With Socket Ends

    ADVANTAGE;
    o Summary:
    o This gate valve with socket ends can be connected with pipes directly without flanges, which leads to convenient installation. Flat bottom seat ring integral with the body, inside and outside epoxy resin coating, wedge wholly bonded with rubber, "o" ring sealing, all insure excellent corrosion protection and reliable sealing capability. This valve is recommended to be installed under the surface box, operated by an adjustable extension spindle.
    O Unique Design:
    o Valves can be connected and sealed with pipes directly.
    o Compact design: one-piece bonnet, non-rising stem.
    o Flat bottom seat ring insures no dead space.
    o Three "o" ring design for stem back sealing leads to maintenance-free.
    O Excellent corrosion protection:
    o Inside epoxy resin coating or vitreous enamel (upon request), outside epoxy resin coating.
    o Socket head cap bolts, sealed with glue on the top.
    Reliable health nature:

    o Epoxy resin coating is up to GB/T17219-1998
    o Wedge bonded with rubber for the health inspection.o Trims are made of stainless steel or bronze.
    Scope of application:
    o Potable water supply, industrial fields and so on.


    Technical characteristics :

    testing standardDIN3230 or JB/T9092
    Nominal pressure1.0Mpa1.6Mpa
    Strength testing1.5Mpa2.4Mpa
    Functional testing1.1MPa1.76Mpa

    Design standard: BS5163
    Application; U-PVC, PE pipe, especially suitable for underground pipe system

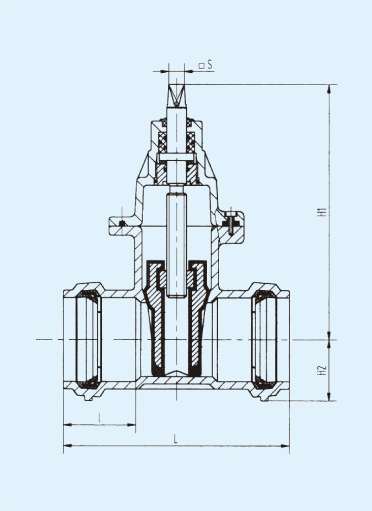

    Face to face dimensions: BS5163
    Working temperature: NBR <80*C
    EPDM< 120CFPM <160C
    Testing standard: BS5163


    Main components and their materials:

    NO.namematerial
    1

    body , bonnet

    QT500-7

    GGG50 with internal and

    External epoxy resin coating

    2wedge

    QT500-7NBR,EPDM,FPMGGG5O with NBR, EPDM OR FPM coating

    3stem

    Stainless steel:1Cr13,1Cr18Ni9TI/

    1Cr17Ni12Mo2Ti

    4stem nut,bushing

    ZCuAl10Fe3

    Bronze

    5washer,O-Ring

    NBR, EPDM or FBM
