    Wafer Type Cast Iron Ball Valve DN50 1.6Mpa DIN Standard Anti - Static

    Ask Lasest Price
    Brand Name : SUFA
    Model Number : Q41F
    Certification : (DNV)ISO9001,(DNV)ISO14001,CE0035
    Price : Negotiation
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/P
    Supply Ability : 500PCS per month
    Delivery Time : within 8-12 working days upon receipt of payment
    • Product Details
    • Company Profile

    Wafer Type Cast Iron Ball Valve DN50 1.6Mpa DIN Standard Anti - Static

    DN50 1.6Mpa DIN Standard Wafer Type 1 pc Cast Iron Ball Valve


    Design Features

    1. Adjustable fire-safe stem packing
    2. Machined fire-lip act as meta backup seat has excellent fire-safe capability
    3. Anti-blow out stem
    4. Anti-static device
    5. Full rated bi-directional shut-off
    6. Optional lockable handle
    7. Spiral wound gasket,prevent external leakage
    8. Full rated dead end service

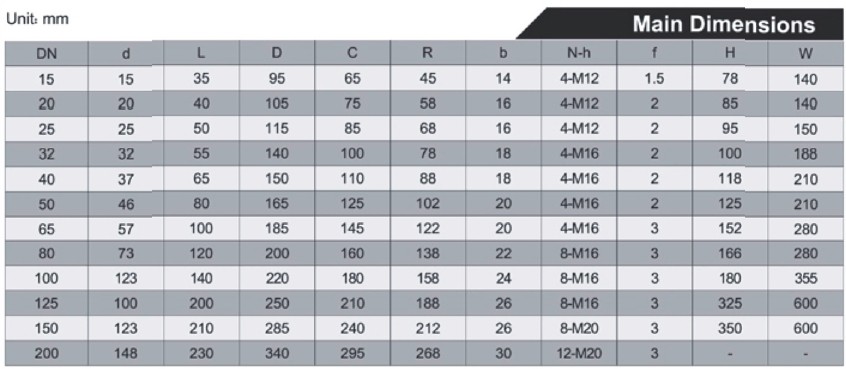

    Main Parameter Specifications

    1. Design and Manufacture: JIS B2031

    2. Face to Face : JIS B2002

    DN15-DN100(6)

    DN125-DN200(39)

    3. End Flange Dimensions : JIS B2212

    4. Nominal Pressure : 10K

    5. Pressure test : JIS B2003

    6. Mounting Pad : ISO5211


    Main parts and materials

    No.Part NameMaterial
    1BodyCast Iron (GG25/GGG-4)
    2BonnetCast Iron ( GG25/GGG-4 )
    3NutCarbon steel
    4BoltingCarbon steel
    5BallStainless steel(SS304/SS316)
    6SeatPTFE/RPTFE/TFM1600
    7GasketPTFE
    8StemStainless steel(SS304/SS316)
    9Stem packingPTFE
    10Gland flangeCast Iron (FC200)
    11Stop collarCarbon steel
    12CirclipSteel
    13LeverDuctile iron (FCD450)
    14Gland boltlCarbon steel
