Model Number : | ZDY641 |
Certification : | (DNV)ISO9001,(DNV)ISO14001,CE0035 |
Price : | USD20~500 /PC |
Payment Terms : | T/T, Western Union, MoneyGram, L/C |
Supply Ability : | 500PCS per month |
Delivery Time : | within 8-12 working days upon receipt of payment |
Purpose
This valve is used as a out off and adjusting equipment for the
various water supply and drainage pipelines in building, chemical
medicine, textile, ship and other industries.
Features
1. Small in size and light in weight. Easy installation and
maintenance.lt can be mounted wherever need.
2. Simple and compact construction, quick 90 degrees on-off
operation.
3. Minimized operating torque, energy saving.
4. Flow curve tending to straight line. Excellent regulation
performance.
5. Long service life. Standing the test of tens of thousands
opening/closing operations.
6. Bubbles tight sealing with no leakage under the pressure test.
7. Wide selection of material applicable for various medium.

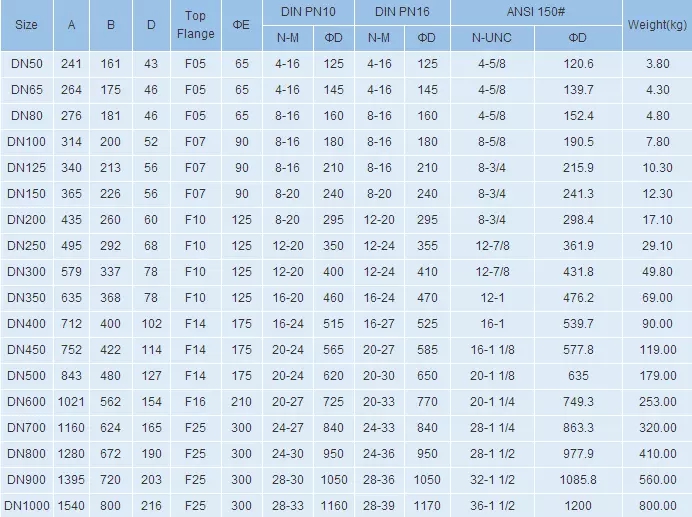

Performance parameters | |||
PN(Mpa) | 1.0 | 1.6 | 150lb |
DN(mm) | 40-1200 | ||
Suitable temperature | ≤100℃ | ||
Media | Water, oil, gas |
Body | Disc | Stem | Seat | Actuator |
Cast iron | Plated ductile iron | Stainless steel | PEDM/NBR | Lever |
Ductile iron | CF8 | WRAS-EPDM | Gearbox and handwheel | |
Carbon steel | CF8M | Viton | Electric | |
Stainless steel | Aluminum bronze | customised | Silicon | Pneumatic |
PS1.Replaceable backed seat 2 Pin disc Pinless disc Nylon disc Epoxy disc |
Testing Conditions
The corner of the inventory
Installation
![]() |
