Rexroth Original DBETX Rexroth Solenoid Valve Proportional Pressure Relief Valve

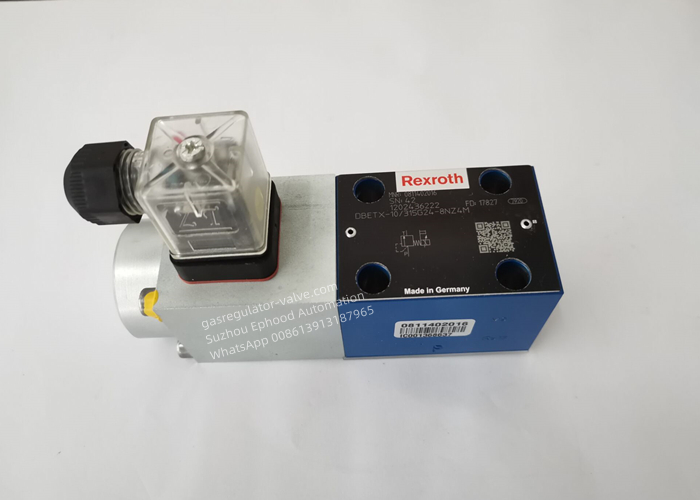

DBETX10315G24-8NZ4M model number of Rexroth Solenoid Valve

DBETX model of Rexroth valve is a Directly operated valves (pilot valves) for limiting system pressure.

Adjustable by means of the solenoid current, see Characteristic curve, Technical data and selected valve electronics.

Max. pressure stage: 315Bar

Connection/calibration

P1 – Ramp time

P2 – Sensitivity

P3 – Zero

P4 – Dither frequency

St1 – Terminal

LED – UB display

General

Rexroth Type DBETX proportional pressure relief valves are remotecontrolled (pilot) valves in conical seat design.

They are used to limit system pressure.

The Rexroth pressure valves are actuated by means of a proportional solenoid.The interior of the solenoid is connected to port T

and is filled with pressure fluid.

With these valves, the system pressure that needs to be limited can be infinitely adjusted by the valve amplifier

electronics in relation to the solenoid current, at an oil flow that is as close as possible to constant.

Basic principle

To adjust the system pressure, a setpoint is set in the trigger electronics. Based on this setpoint, the electronics

control the solenoid coil with regulated PWM (pulse-width-modulated)

current. The proportional solenoid converts the current to a mechanical force, which acts on a main spring by means

of the armature plunger. An “additional” spring between the cone and

the seat contributes to stability and a minimal residual pressure. The spring force acting on the cone and the pressure

in the valve seat balance one another at a constant oil flow

(0.7...1 l/min). The “pmax” pressure stage is determined by the cone and seating bore configuration.

Ordering Details for Choosing model Number

     Suzhou Ephood Automation Equipment Co., Ltd(EPHOOD LTD) is specialize in supply of wide range products to the Oil & Gas Industry, Power Plants, Petro-chemical companies ,Water Treatment and Industrial Automation System. Our vast experiences in providing our customers' requirements according to the specifications provided by the clients as well as to assist the clients to choose the correct product to meet their requirement.

     EPHOOD LTD is committed to providing the best quality services including Industrial Valves ,Control Valves , Rexroth Valve ,Valve Positioner, Gas Regulators, Rosemount/YOKOGAWA Pressure Transmitters, YOKOGAWA Paperless Recorder and Tend Switches .

     EPHOOD LTD provide kinds of high quality gas regulators. Such as First-stage & Second-stage Regulators, Regulators with shut off and Commercial & Industrial Regulators. Adjustment accuracy, superior performance, and easy to maintain.These regulators are widely used in gas boiler, heating equipment, building, Commercial & Industrial gas supply .

     EPHOOD LTD established the valve manufacture work in 2005Year under the name Suzhou Leading Flow Control Equipment Co.,Ltd. Building a good cooperation relationship and become the sales agent with SUFA Technology Industry Co.,Ltd,(CNNC ) and Yancheng JingGong Valve Co.,Ltd. Main valve products are Gate valve ,Globe valve, Check valve, Ball Valve, Butterfly valve, Steam Trap and Control Valve.

Our professionals will manage every facet of your project, so you can focus on growing your business.
